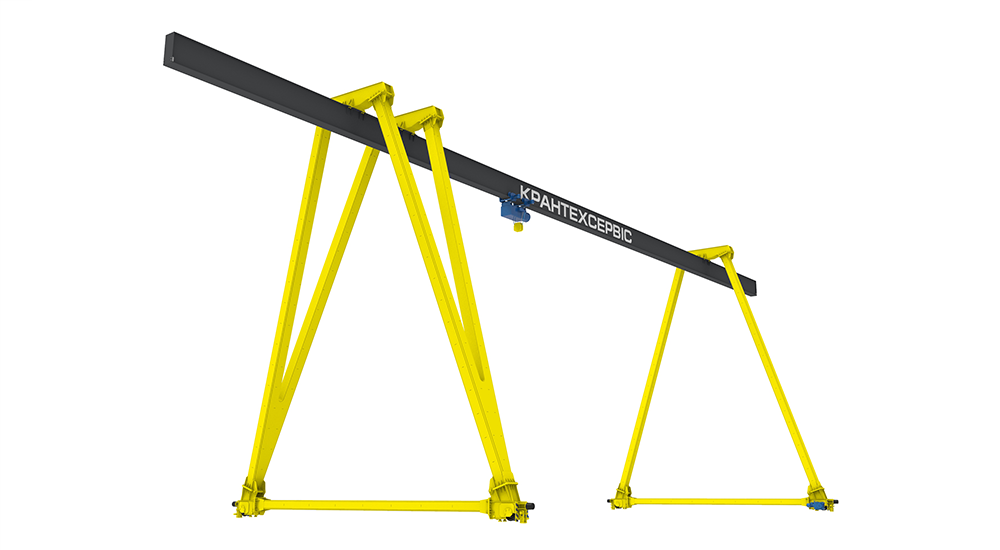

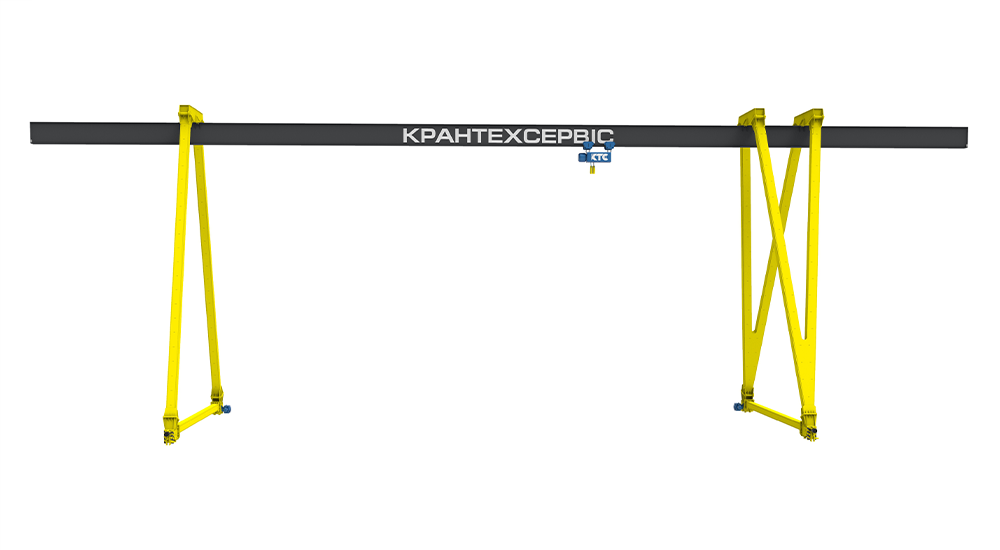

electric single-girder gantry crane

1; 2; 3,2; 5; 6,3; 8; 10; 12,5; 16; 20t

without consoles / with one console / with two consoles

up to 34m

T-beam, pipe, box-section; trussed

motordrive, electric motor+reducer

box section with festoon cable, flexible cable on string

: stepless (frequency converter) / relay-contactor

А1-А8

10/40 m/min (standard) / up to 60 m/min (frequency-controlled)

20 m/min (single-speed) / 5/20 m/min (two-speed) / 1-20 m/min (frequency controlled)

: 4; 8; 4/1; 8/2 m/min

AC 380V, 50Hz

independent moving control pendant / by radio channel / from the cabin

standard design / with reduced construction height

general industrial / fireproof

U1, U2, U3

КР70; КР80; Р24; Р43; Р50; Р65

Crane can be optionally supplied with: anti-collision system, an indication of the weight of cargo being lifted, lubrication system, light, and sound signal to start moving.
